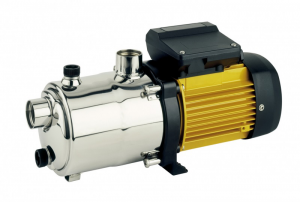

ESPA Tecno Horizontal Multi-Stage Pump
Multi-stage, integral, centrifugal, horizontal electric pumps, made from stainless steel and technopolymers.
Designed for pressurising homes, low-scale irrigation systems and clean-water pumping applications that require a sturdy, compact pump.
Specially recommended for drinking-water applications.
Their reliability is added to their ability to work under many different conditions, and they are remarkable for their compatibility, including an ESD variable speed control module for automating their operation according to criteria of energy savings and installation efficiency.
They are particularly recommended for pressurisation at constant pressure.
Performance Features
Electric features:
| Single-phase models | Three-phase models | Intensity [A] | Input power P1 [kW] | Motor power P2 | Condenser capacity [µF] | |||
|---|---|---|---|---|---|---|---|---|
| 50 Hz | 50 Hz | 1~ 230V | 3~ 230/400V | 1~ | 3~ | [kW] | [HP] | 1~ |
| 2,80 | 2.1/1.2 | 0,60 | 0,60 | 12µF-450V | ||||
| 3,60 | 2.3/1.3 | 0,80 | 0,70 | 12µF-450V | ||||
| 4,10 | 3.3/1.9 | 0,95 | 0,95 | 0,75 | 1,01 | 12µF-450V | ||
Hydraulic features:
| Single-phase models | Three-phase models | Flow [m³/h] | 0,0 | 0,4 | 0,8 | 1,3 | 1,7 | 2,1 | 2,5 | 2,9 | 3,4 | 3,8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height [m] |
34,2 | 33,4 | 32,1 | 30,2 | 27,8 | 24,8 | 21,3 | 17,3 | 12,7 | 7,6 | ||
| 45,2 | 44,1 | 42,3 | 39,7 | 36,4 | 32,5 | 27,8 | 22,4 | 16,4 | 9,6 | |||
| 56,2 | 55,1 | 53,2 | 50,4 | 46,8 | 42,3 | 37,0 | 30,8 | 23,8 | 15,9 |
Series Features Tecno 15
