| Pipe sizes: 1 1/2″ and 2″ female NPT fittings |
| Flow from: 4 to 100 GPM (15 to 375 LPM) |
| Acceptable in Direct Sunlight |
Overview

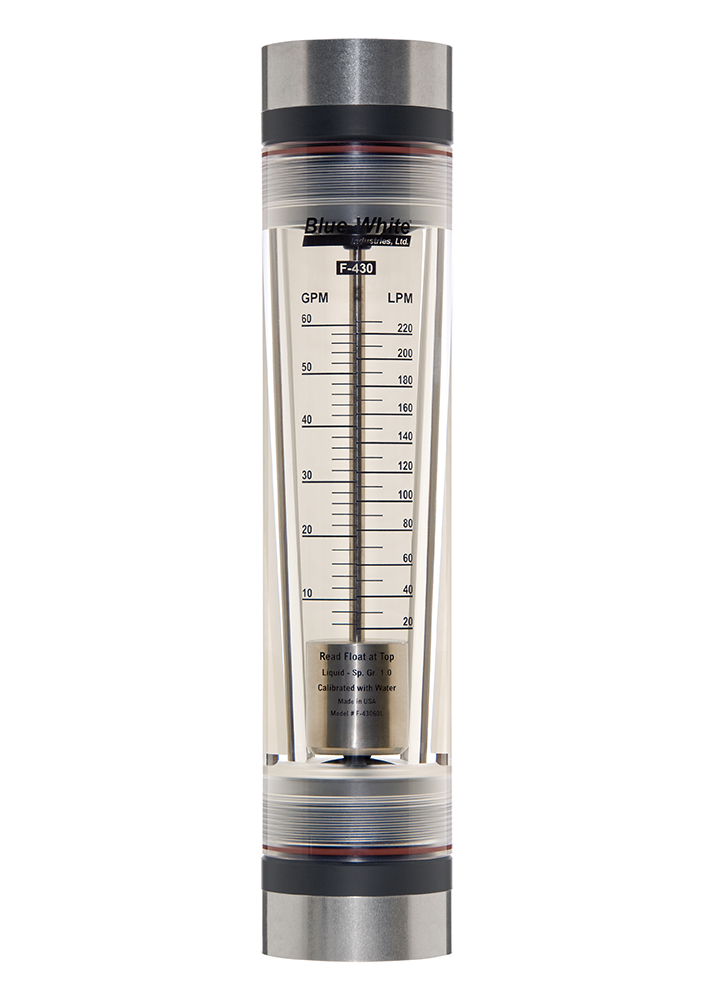

- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)

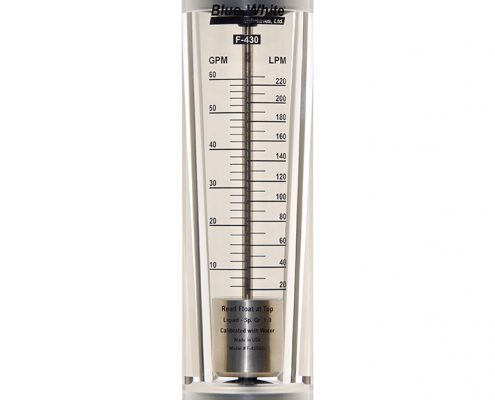

- Direct reading permanent scale.
- White back reflector for easy reading.
- Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
Specifications
- Max. Working Pressure
130 PSI (8.9 bar) @ 70°F (21°C) - Max. Fluid Temperature
130°F (54°C) @ 0 psig - Full scale accuracy
+/- 5% - O-ring seals
FKM (Optional EP) - Float Material
316 SS (optional Hatelloy-C) - Adapter Material Options
PVC - Approximate shipping weight
6 lb. (2.7 kg) - NIST certificates optional
